Dripperlines & Drippers

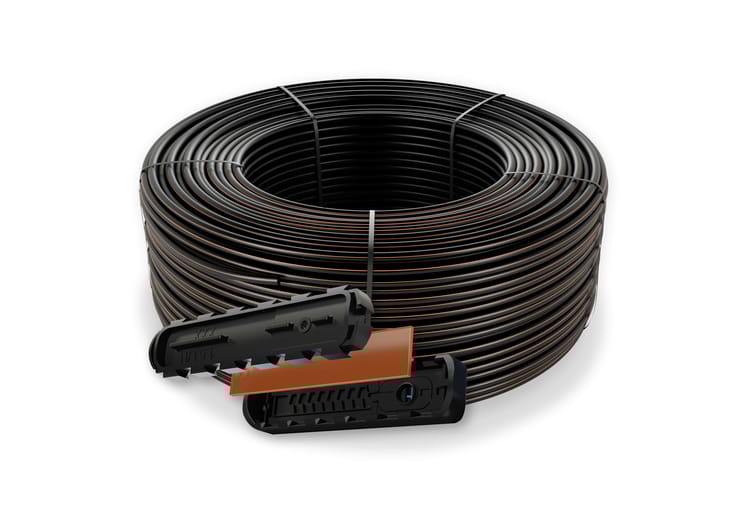

UniRam™ RC

The world's most reliable dripper for higher yields



UniRam™ RC is the world’s most durable pressure compensating dripperline and the first choice for many South African farmers. Ensuring absolutely uniform delivery of water and nutrients to the roots of each plant, it also features a high and proven resistance to clogging, even in adverse water conditions. The double anti-clogging benefit, with its self-flushing and continuous self-cleaning mechanism, ensures high uniformity, regardless of the field, topography and lateral lengths.

Why UniRam™ RC?

  • Pressure compensated: Precise and equal amounts of water are delivered over a broad pressure range. 100% uniformity of water and nutrient distribution along the laterals. The dripper has a draining mechanism that drains the water from the pipe in the end of the irrigation cycle, allowing easier recoiling of the dripperline at the end of the crop cycle.

  • Continuously self flushing: Continuously flushing debris, throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted dripper operation.

  • Self-flushing system with wide filtration area improves resistance to clogging thus making UniRam™ RC highly resistant when using low quality water, which leads in reduction in filtration requirements, hence increasing filtration efficiency.

  • Physical root barrier: Better protection against root intrusion without reliance on chemicals.

  • TurboNet™ labyrinth assures wide water passages, large deep and wide cross section improves clogging resistance.

Specifications of UniRam™ RC

  • Flow rates: 0.70 , 1.00 , 1.60, 2.30 & 3.50 ℓ/h
  • Pressure-compensating range: 0.5 – 4.0 bar.

  • Largest filter in each dripper. Recommended filtration: according to dripper flow rate. Filtration method is to be selected based on the kind and concentration of the dirt particles existing in the water. Wherever sand exceeds 2 ppm in the water, a Hydrocyclone is to be installed before the main filter. When sand exceeds 20 ppm and when total suspended solids exceed 150 ppm, pre treatment will be applied according to Netafim™ expert team’s instructions.

  • Double TurboNet™ labyrinth with large water passage.

  • To be “welded” into thick-walled dripperlines (1.00, 1.20 mm).

  • Injected dripper, very low CV.

  • Injected silicon diaphragm.

  •  High UV resistance. Resistant to standard nutrients used in agricultural.
