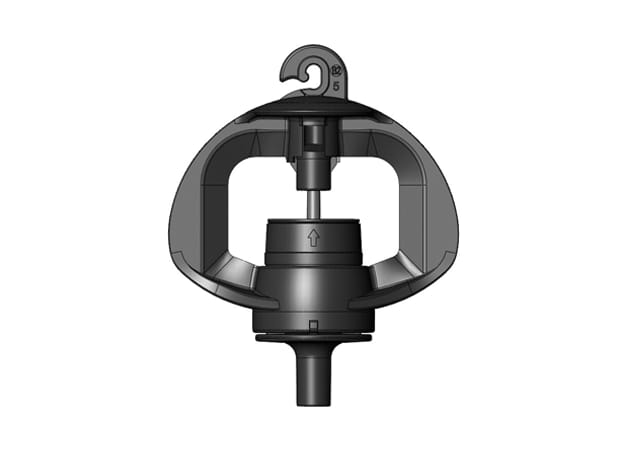

GyroNet™ Jet

Uniform sprinkler performance even in the sandiest environments

Sand particles in the air and water can significantly hamper sprinkler performance and necessitate frequent repairs caused by wear and tear of moving parts. GyroNet™ Jet micro-sprinklers ensure trouble-free performance and uniform water coverage of your orchard – no matter how sandy the conditions.

Specially-designed deflector and sprinkler head prevent damage from harsh water and airborne sand
Maintains irrigation uniformity in sandy conditions, while keeping maintenance costs low

Application

Irrigation

Pressure

Low Pressure
Medium pressure

Coverage type

Localized
Strip

Crop type

Orchards

Trajectory angle

Normal

Why GyroNet™ Jet?

Clogging resistance in poor water: Reduces wear risk from harsh water containing large amounts of sand – guaranteeing perfectly uniform water delivery, season after season.
Sand protection: Sand particles in the water and air can stop the sprinkler from working due to excessive wear of the sprinkler rotor-pin and upper bearing. A specially designed “square hole” upper bearing extends the life of the sprinkler rotor, reducing the need for replacement and repair, for trouble-free performance.
Smart insect defense: Pop-up mechanism keeps nozzle insect and spider-free, eliminating the need for flushing, and lowering maintenance costs.
Tough in the field: Manufactured from tough plastic materials that can withstand agrochemicals, fertilisers, and prolonged sun exposure.

Specifications of GyroNet™ Jet

A static emitter.
4 different flow rates: 40, 58, 70, 90 ℓ/h. Nominal flow rates at 17 m pressure.
Recommended working pressure: 25 m (at the sprinkler head).
Recommended filtration: 200 micron
Inlet connection: Press fit
Upper bearing: Special type of upper bearing (square hole) holds the rotor from spinning.
5 types of static deflectors: 360 degrees (12 jets), 300 degrees (10 jets), 2x90 (butterfly) (8 jets), 180 degrees (6 jets) and 90 degrees (4 jets).
All deflectors are coloured orange.
