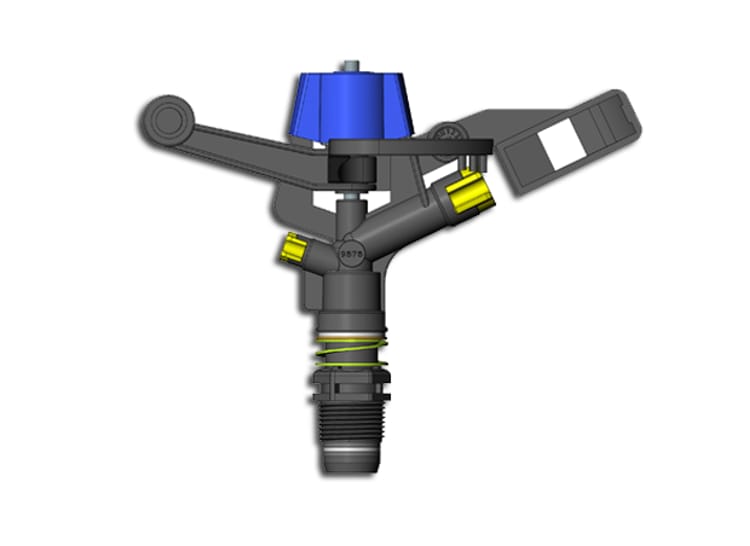

D-Net™ 9575

Ultra-durable impact sprinkler for highly uniform open-field crop irrigation

D-Net™  9575, 20mm impact sprinklers deliver optimal water-distribution uniformity for your open-field crops. Featuring an innovative 3D diffusion arm, the D-Net™ 9575 is the perfect choice for precision irrigation of fields that require spacing up to 18x18 metres.

  • Maximum water-distribution uniformity and maximum water-use efficiency
  • Delivers long-term performance in any climate, with any nutrient or chemical applications

Why D-Net™ 9575?

  • Higher and better yields.

  • The D-Net™ 9575 provides outstanding water-distribution uniformity, due to the unique 3D arm enabling, the highest uniformity in the market, respective to its flow rate and installation spacing.

  • The D-Net™ 9575 provides maximum water-use efficiency.

  • Saves labour costs and multiple expenses on maintenance.

  • High robustness – The D-Net™ 9575 has special design that makes the sprinkler more resistant and ensures high performance for a long product life.

  • Extended product life – The D-Net™ 9575 is made of UV-protected materials, making it durable under all climate conditions and with any applied nutrients.

  • Flexible installation – Can be installed on solid sets or on portable field stands.

  • Easy to maintain – A special nozzle-key is designed to allow simple cleaning of the nozzle even under pressure.



Specifications of D-Net™ 9575

  • 5 different nominal flow rates: 1200, 1400, 1600, 1800, 2000 ℓ/h.  Nominal flow rates at 30 m pressure.
  • Recommended working pressure: 20 - 40 m (at the sprinkler head).
  • Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone is to be installed to protect the system. When sand/silt/clay solids exceed 100 ppm, pretreatment will be applied according to Netafim™ expert team’s instructions.
  • Water trajectory: 24 degrees
  • Inlet connection: 20 mm male threaded.
  • Colour-coded nozzles for easy identification.

Downloads

D-Net™ 9575 Product & Technical Sheet

D-Net™ 9575 Product & Technical Sheet

Sprinklers Catalogue

Sprinklers Catalogue

Other D-NET™ Models

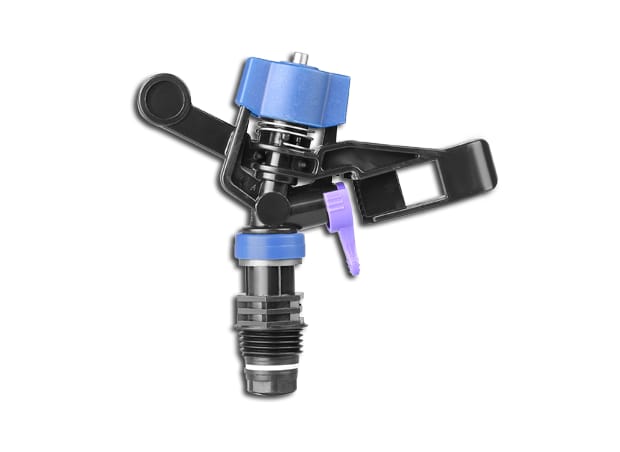

D-NET™ 6550

D-NET™ 6550

D-Net™ 6550 impact sprinklers deliver maximum water-distribution uniformity for under-canopy irrigation with spacing up to 12x12 metres.

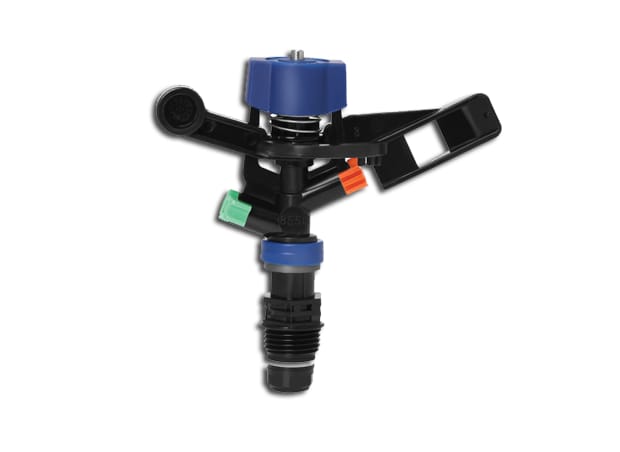

D-NET™ 8550

D-NET™ 8550

D-Net™ 8550 impact sprinklers deliver maximum water-distribution uniformity for open-field crops with spacing up to 13x12 metres.
